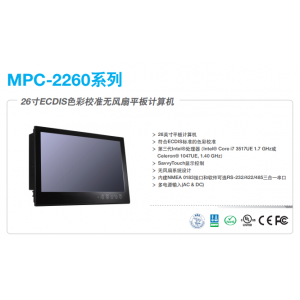

MPC-2260 Series
Computer: CPU Intel Core i7-3517UE (1.7 GHz); Chipset Intel HM65; Memory 8 GB (4 GB pre-installed, 1 slot for 4 GB DDR3-1600 204-pin SO-DIMM); USB 4 x USB 2.0 Type A; Storage 2 x SATA III 6 Gbps, 2.5" removable slots; BIOS 64 Mbit Flash SPI/ACPI; Graphics integrated Intel HM65; Video output DVI-D x 1, VGA x 1 (female); Audio I/O 3.5 mm jack; KB/MS 2 x PS/2. Display: 26-inch MVA panel, 16:10, 1920x1200, 0.2865 mm pitch, 15 ms response, 1500:1 contrast, 300 cd/mยฒ brightness, 176ยฐ/176ยฐ viewing angle, 550.08 x 343.8 mm active area, 16.7M colors. Ethernet: 2 x 10/100/1000 Mbps RJ45 with 1.5 kV isol
Computer: CPU Intel Core i7-3517UE (1.7 GHz); Chipset Intel HM65; Memory 8 GB (4 GB pre-installed, 1 slot for 4 GB DDR3-1600 204-pin SO-DIMM); USB 4 x USB 2.0 Type A; Storage 2 x SATA III 6 Gbps, 2.5" removable slots; BIOS 64 Mbit Flash SPI/ACPI; Graphics integrated Intel HM65; Video output DVI-D x 1, VGA x 1 (female); Audio I/O 3.5 mm jack; KB/MS 2 x PS/2. Display: 26-inch MVA panel, 16:10, 1920x1200, 0.2865 mm pitch, 15 ms response, 1500:1 contrast, 300 cd/mยฒ brightness, 176ยฐ/176ยฐ viewing angle, 550.08 x 343.8 mm active area, 16.7M colors. Ethernet: 2 x 10/100/1000 Mbps RJ45 with 1.5 kV isol
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| MPC-2260-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| MPC-2260-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| MPC-2260-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
