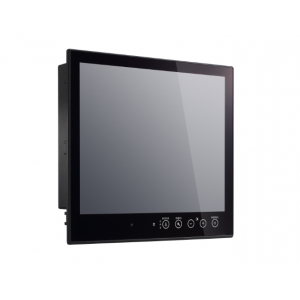

MPC-2190 Series
Computer: CPU: Intel Core Processor i7-3517UE (1.7 GHz); Chipset: Intel HM65; System memory: 8 GB capacity, 4 GB pre-installed: 1 DDR3-1600 204-pin SO-DIMM SDRAM slot; USB: USB 2.0 host x 4, type A, supports system boot; Storage: 2 SATA-III connectors; BIOS: 64 Mbit Flash BIOS SPI, supports ACPI; Graphics: Integrated Intel HM65 Express chipset; Video output: DVI-D x 1, VGA x 1 (female). Other: Audio: I/O, 3.5 mm mini jack; KB/MS: 2 PS/2 ports for standard keyboard and mouse. Display: Panel size: 19-inch widescreen; Panel type: MVA; Aspect ratio: 5:4; Resolution: 1280 x 1024 (SXGA); Response ti
Computer: CPU: Intel Core Processor i7-3517UE (1.7 GHz); Chipset: Intel HM65; System memory: 8 GB capacity, 4 GB pre-installed: 1 DDR3-1600 204-pin SO-DIMM SDRAM slot; USB: USB 2.0 host x 4, type A, supports system boot; Storage: 2 SATA-III connectors; BIOS: 64 Mbit Flash BIOS SPI, supports ACPI; Graphics: Integrated Intel HM65 Express chipset; Video output: DVI-D x 1, VGA x 1 (female). Other: Audio: I/O, 3.5 mm mini jack; KB/MS: 2 PS/2 ports for standard keyboard and mouse. Display: Panel size: 19-inch widescreen; Panel type: MVA; Aspect ratio: 5:4; Resolution: 1280 x 1024 (SXGA); Response ti
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| MPC-2190-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| MPC-2190-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| MPC-2190-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
