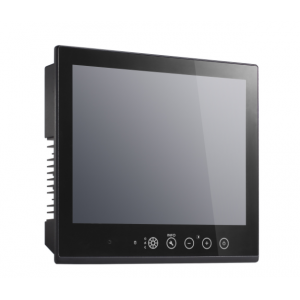

MPC-2150 Series
Computer: CPU Intel Core i7-3517UE 1.7 GHz or Intel Celeron 1047UE 1.4 GHz; OS Windows Embedded Standard 7 32/64-bit or Windows 7 Professional 32/64-bit; Chipset Intel HM65; Memory 4 GB pre-installed; Storage 1 x 2.5" HDD/SSD slot + 1 x CFast slot; USB 4 x USB 2.0 Type A; Front bus 1066 MHz; BIOS 64 Mbit Flash SPI/ACPI; Video output DVI-D x 1, VGA x 1; Buzzer 75-85 dB (IEC 60945); Audio I/O 3.5 mm jack; KB/MS 2 x PS/2. Display: 15-inch wide, 5:4, 1024x768, 20 ms response, 700:1 contrast, 1000 cd/mยฒ brightness, 304.128 x 228.096 mm active area, TN panel. Ethernet: 2 x 10/100/1000 Mbps RJ45 with
Computer: CPU Intel Core i7-3517UE 1.7 GHz or Intel Celeron 1047UE 1.4 GHz; OS Windows Embedded Standard 7 32/64-bit or Windows 7 Professional 32/64-bit; Chipset Intel HM65; Memory 4 GB pre-installed; Storage 1 x 2.5" HDD/SSD slot + 1 x CFast slot; USB 4 x USB 2.0 Type A; Front bus 1066 MHz; BIOS 64 Mbit Flash SPI/ACPI; Video output DVI-D x 1, VGA x 1; Buzzer 75-85 dB (IEC 60945); Audio I/O 3.5 mm jack; KB/MS 2 x PS/2. Display: 15-inch wide, 5:4, 1024x768, 20 ms response, 700:1 contrast, 1000 cd/mยฒ brightness, 304.128 x 228.096 mm active area, TN panel. Ethernet: 2 x 10/100/1000 Mbps RJ45 with
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| MPC-2150-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| MPC-2150-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| MPC-2150-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
