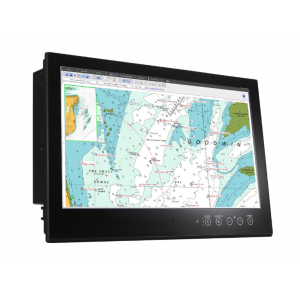

MPC-2240 Series
Computer: CPU Intel Celeron 1047UE (2M Cache, 1.40 GHz, 17W TDP); OS Windows 7 Professional, Windows XP Embedded, Windows Embedded Standard 7, Windows XP SP3, Linux Debian 7 (pre-installed on request); Chipset Intel HM65; Memory 4 GB pre-installed, up to 8 GB, 1 slot for 4 GB DDR3-1600 204-pin SO-DIMM; Storage 2 x SATA III 6 Gbps, 2.5" removable slots; USB 4 x USB 2.0 Type A; BIOS 64 Mbit Flash SPI/ACPI; Graphics integrated Intel HM65; Video output dual: DVI-D x 1, VGA x 1; Audio I/O 3.5 mm jack; KB/MS 2 x PS/2. Display: 24-inch, 16:9, 1920x1080, 0.276 mm pitch, 25 ms response, 5000:1 contrast
Computer: CPU Intel Celeron 1047UE (2M Cache, 1.40 GHz, 17W TDP); OS Windows 7 Professional, Windows XP Embedded, Windows Embedded Standard 7, Windows XP SP3, Linux Debian 7 (pre-installed on request); Chipset Intel HM65; Memory 4 GB pre-installed, up to 8 GB, 1 slot for 4 GB DDR3-1600 204-pin SO-DIMM; Storage 2 x SATA III 6 Gbps, 2.5" removable slots; USB 4 x USB 2.0 Type A; BIOS 64 Mbit Flash SPI/ACPI; Graphics integrated Intel HM65; Video output dual: DVI-D x 1, VGA x 1; Audio I/O 3.5 mm jack; KB/MS 2 x PS/2. Display: 24-inch, 16:9, 1920x1080, 0.276 mm pitch, 25 ms response, 5000:1 contrast
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| MPC-2240-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| MPC-2240-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| MPC-2240-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
